Introduction:

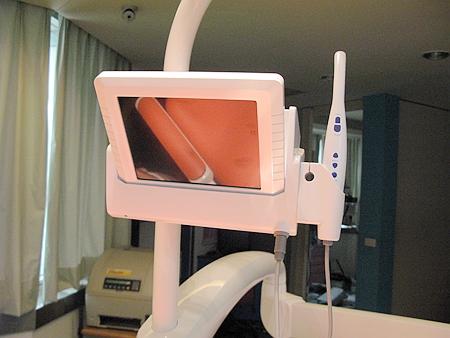

This product is specially designed for dentist; it combines intraoral camera and 8Inch LCD which makes dentists easier to operate anywhere and anytime. It can instead the Big LCD and install it in the dental unit directly. Moreover, it can upgrade to connect with intra oral camera either wired or wireless which can let dentist view the image immediately on the screen.

Package Content:

1. M-868 machine         1 piece
2. Video cable           1 piece
3. USB cable             1 piece
4. Disc                  1piece
5. Camera sheath         50 pieces
6.DC5V/3A power supplier 1 piece
7.CF-988A camera         1 piece
8. Camera holder         1 piece

Optional Components:

1.M-91 Wireless transmitter
2.M-97 Wireless receiver
3.M-22 LCD Holder
4.M-99 2.5inch small monitor

M-868 Characteristic:

1. Sony CCD intra oral camera and 8 inch LCD integrated
2. Camera can take full pictures of 60 pieces and quad pictures of 240 pieces one time.
3.8 inch LCD can freely adjust contrast, lightness and color;
4. Replace traditional LCD on dental chair;
5. Can be freely 45° adjusted;
6. With high resolution and high performance;
7. Video and 2.0 USB image output function
8. Suitable for PAL and NTSC system
9. Offer wired and wireless system

8 Inch LCD Monitor Specification:

1. LCD size : 8.0inch (Diagonal)
2. Driver element: a-Si TFT active matrix
3. Resolution: 800*3(RGB)*600
4. Display mode: Normally White, Tran missive
5. Dot pitch: 0.0675(W)*0.2025(H)mm
6. Active area : 162.0(W)*121.5(H)mm
7. Module size: 183.0(W)*141.0(H)*6.3(D)mm
8. Surface treatment: Anti-Glare
9. Color arrangement: RGB-stripe
10.Interface: Digital
11.Backlight power consumption:1.782W(TYP)
12.Panel power consumption :0.356W(TYP)

Warranty: One Year! Service: Whole Life!
