Introduction：
Automatic Steam Sterilizer(hereinafter referred to as sterilizer) is a precision instrument specializing in the operation occasion in need of simple, fast and efficient sterilization by the doctor or his/her assistants, and the doctor shall take the responsibility for such work.
The sterilizer adopt microprocessor to enable intelligent control, which make easy to operate. Fully automated control, dynamic parameters and status display. Automatic fault diagnosis, over-temperature, over-pressure auto-protection to ensure the reliability of sterilization and disinfection.
Feature:
Must use the distilled water for the purpose of lasting the working life.
3 time pulsating vacuum make less residual air in chamber to Ensure better sterilization effect.
LCD screen show all sterilization data, which ensure better control of the sterilization process
Safety valve installed in sterilizer, when pressure beyond 0.27Mpa.
The balance pressure can be released by safety valve to ensure the operate safety.
The instrument have self-protect feature. When water tank or drainage water tank is full, the sterilization will complete pending sterilization in case the implementation of sterilization procedures , But the machine can not start to next operation unless add water or drainage. There will be buzzer to remind users to add water or drainage.
Application Scope：
This product can be applied in the tooth device, operation device, Sanitary Material and other heat-resisting articles existing in the Dept. of Stomatology,
Ophthalmology Surgery and lab.
Technical:

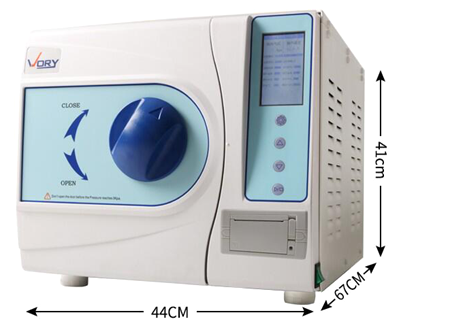

Inner chamber of the Sterilizer (Diameter X Depth):245mm X450mm
Related Voltage: 220V/50Hz, 110V/60Hz
Related Power: 1800w
Sterilization(Pressure/Temperature):
90～130KPa/121℃（standard atmospheric pressure）
20～230KPa/134℃(standard atmospheric pressure）
Safety Grade: Grade I
Fuse: T15A
Water tank Capacity: 2L
Each cycle water consumption: 0.3L
Minimum tank level alarm: 0.5L
Operate Temperature: 0～40℃

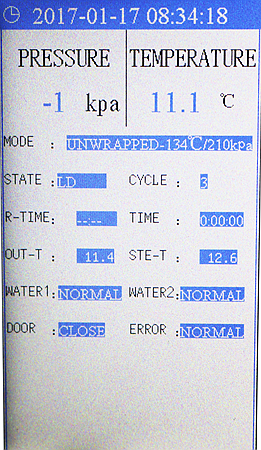

Control Panel:
.png)
1.System time 2.Chamber pressure real-time: KPa 3.Chamber temperature real-time:℃ 4.Current operating mode
5.The current work status 6.Machine running total cycle 7.Sterilizer outdoor wall temperature 8.Steam temperature
9.Waste water tank level 10.Distilled water tank level 11.Safety gate status 12.Error Code

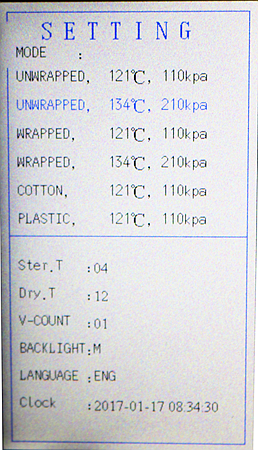

Parameter setting menu:
.png)
Operating Model:
1、Unwrapped metal: 121℃, default Sterilize time15min, Vacuum: 1 cycle
2、Unwrapped metal: 134℃, default Sterilize time 4min, Vacuum: 1 cycle
3、Wrapped: 121℃, default Sterilize time:15min,Vacuum:3 cycles
4、Wrapped 134℃, default Sterilize time 4min, Vacuum:3 cycles
5、Cotton 121℃, default Sterilize time 15min,Vacuum:3cycles
6、Plastic 121℃, default Sterilize time 15min,Vacuum:1cycle
Sterilization time:
Mode:1、3、5、6 can choose 15minuts to 30minutes
Mode:2、4 can choose 4 minutes to 20 minutes
Dry Time:Can choose 12 minutes to 30 minutes
Vacuum cycle: Can choose 1 cycle to 3 cycles
Backlight: Can choose 3 level
System time: Can be adjusted
