Feature:

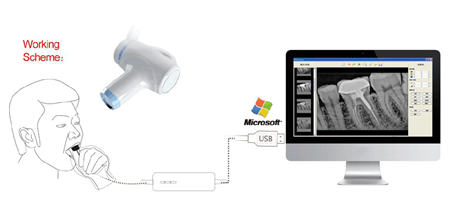

Dental digital x-ray imaging system is consisted of sensor, image controller, image
capture system and connection cable (USB port) , connected with PC or notebook via
USB cable. The power of controller and sensor is supplied by USB port, require no
battery or power charge system. The whole equipment need to work together with
imaging software.
The sensor active surface is flat including the size 1 and size 2.
Size1, universal sensor---Use for regular procedures, both for children and adult.
Size2 sensor---Use for bitewings procedures
There are two ways to position the sensor in the patient mouth to get an classic
radiology. You may spend some time to adapt due to the rigidity of the sensor.
One method is angular bisector technique, the other method is paralleling technique.
It is just the way to position sensor, which can be chosen by practitioner’s experience.
X-Ray Generator Compatibility
Normally, the sensor is compatible with all generators which meets the present
standard of intraoral radiology. You can use a high frequency or conventional
generator. To achieve gaining better images, the generator must operate with a voltage
of 65 to 70kV.
Technical:
Sensor: APS CMOS sensor
External dimension (mm) :27.5×38.5(HDR-500); 32.3×44.3(HDR-600)
Sensor Active Area(mm) : 22.5×30(HDR-500) ; 27×36(HDR-600)
Sensor Thickness : 6mm
Dynamic Range : 0~4,096
Power : 5V±0.5V
Image Transfer :USB2.0
Cable Length :.≥ 3m
Computer System Requirements:
Processor: Intel 1.2GHz chip or above;
Memory: Above 1G ;
Hard disk: Above 40G;
Interface: USB 2.0;
Display: Resolution 1024 × 758 (15") or above
Operating System: Windows XP
The computer connected to system shall be in accordance with IEC 60950-1:6005.
Attentions:
1.As a precision devices, avoid flop,pulling and long-time disinfectant soak
2.Put disposable plastic jackets before used, avoid cross infection and allergy
3.No bite, for fear that the sensor or the jacket been broken
4.Caution for epileptic or psychopath
5.Learn the user manual carefully before use
6.User should be the professional dental or technician
Warranty: One Year! Service: Whole Life!
