Description:
Used to heat composite resin material to improve its flowing effect; can also be used to heat manual instrument(s) for bonding.
With precise circuit to control the heating module, temperature tolerance is controlled within 1 Degree Celsius.
3-gear temperature: 40, 50, 70 Degrees Celsius
Features:
1. Warming the composite resin to approximately 39°C, making the material more fluid and reducing the resin extrusion time and minutes
The internal stress of the curing stage. Heating the resin heater temperature setting to 50°C can result in flow for cementation
Better composite resin.
2. Heating the anesthetic to body temperature can relieve the pain during infiltration.
3. According to the material and personal preference, the temperature can be set to: 40±1°C, 50±1°C and 70±1°C.
Operation:
1. Insert the plug of power adapter DC heating main body of the DC socket, and then insert the power adapter into electric outlet. then three temperature indicator light normally on at the same time;
2. Place the heating body on the smooth desk;
3. turn on/off button, open the heating body, pressing the button once again, close the heating body,Boot the default temperature of the heating body is 40 degrees (closed heating body, three temperature indicator light normally on at the same time);
4. According temperature selection button can choose what you need,the follow detailed list of temperature can be seen;
Temperature
Indicator light color
Heating
Reach the #ff0000 temperatur
40℃
white
white LED glisten
white LED light normally on
50℃
green
green LED glisten
green LED light normally on
70℃
red
red LED glisten
red LED light normally on
When the indicator light is glisten from normally on,temperature has reached the #ff0000 temperature;
5. use the resin composite material of syringe inserted into a slot in the heating body, or put into the using manual equipment
reach the undefined temperature;
CAUTION:
Tighten the lid of the syringe when inserting resin composite material, to prevent the resin material from leaking inside
the heating body.
Cleaning and Disinfection:
1.All parts can be wiped clean with a cloth dampened with disinfectant.
2.Caution: Do not immerse any parts in any liquid to disinfect; be not autoclavable.
Technical:
Power adapter:
Input: 100-240V AC 50/60Hz 0.8A Max
Output: 12V DC 2A
Underfined:
Power: 24W
Temperature setting: : 40±1℃, 50±1℃, 70±1℃
Products Category: Dental Composite Heater
Package Size: 21*11*8.5cm
Package Gross Weight: 1kg

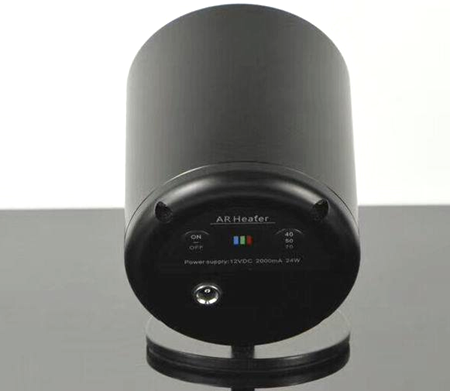

Composite Heat Consist:
1－heat the main body
2－power adapter
3－temperature indicator light
4－Turn on/off button
5－thermopreferendum button
6－power DC socket
Warranty: One Year! Service: Whole Life!
