Features:
1.E-type connector
2.Wrench type
3.Precise technology, Steady, no vibration while revolving, offering a steady operation.
4.Suitable for any E-type handpiece accords with ISO standard
5.135°C Autoclavable, suitable for both steam and chemical autoclave
Contra Angle Handpiece
Low Speed 22,000-27,000 rpm.
The shank of the instrument mounted therein is 2.35 mm
Fastening of the instruments with a turning latch
Autoclavable 135°C
For any lab or E-type motors
Straight Nosecone
Working pressure: 0.3MPa (4-hole);
0.25MPa (2-hole) (Measure meter is installed at the end of air motor to measure the air pressure).
Revolution: about 22000-27000r/min (adjustable between clockwise or anticlockwise)
Noise: ≤68dB
Air consumption: about 56L/min
Ratio: 1:1
Max speed of contra angle: 25000rpm/min.
Air Mortor
Supply air pressure: 245-392KPa (2.5-4kgf/CM2)
1:1 Direct Drive
Borden 2 holes or 4 holes
Max speed 20,000 min-1
Specifications:
Air-in Pressure(kg/c㎡):2.5
Motor Rotation(rpm):22,000
Air Wastage:(N1/min):42
Air-in Pressure(kg/c㎡):3
Motor Rotation(rpm):25,000
Air Wastage:(N1/min):51
Air-in Pressure(kg/c㎡):4
Motor Rotation(rpm):27,000
Air Wastage:(N1/min):72

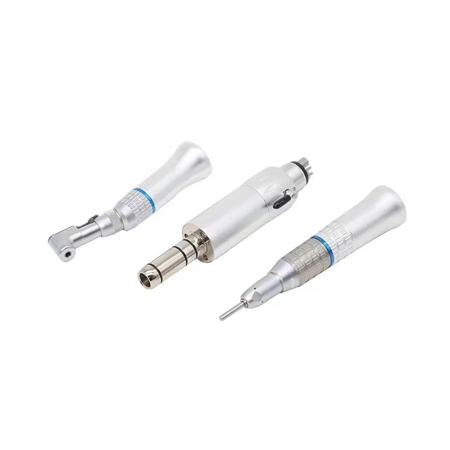

Packing List:
E-type air motor: 1 each
Straight nose cone: 1 each
Contra angle handpiece: 1 each
Warranty: One Year! Service: Whole Life!
