The New-Gen of technology micromotor

Advantages:

Perfect balance, ultra light, mini size Fatigue free after long time use, powerful functions, with LED illumination
Simple operating system

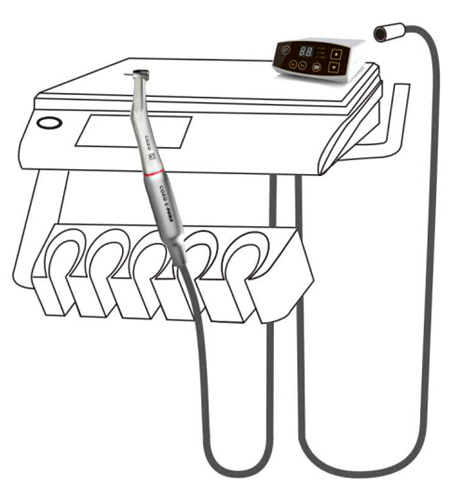

Connect the dental unit to the C-Puma with a 4 holes tubing,use the foot pedal to control the electric motor.

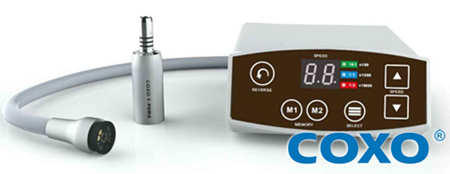

The New-Gen of technology micromotor C-Puma
According to the different treatments and different handpieces, the speed can be adjusted from 100—200,000rpm/min.
Compact and handy, high torque
Ergonomic designed length and weight greatly reduce the fatigue from long time operation, the motor can be sterilized.

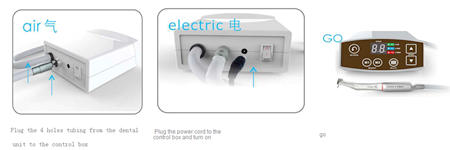

2 Steps for upgrading the dental unit:Air, Electricity, Go


Technical:

Electric Micromotor:

Torque output：Max. 2.5 N.cm

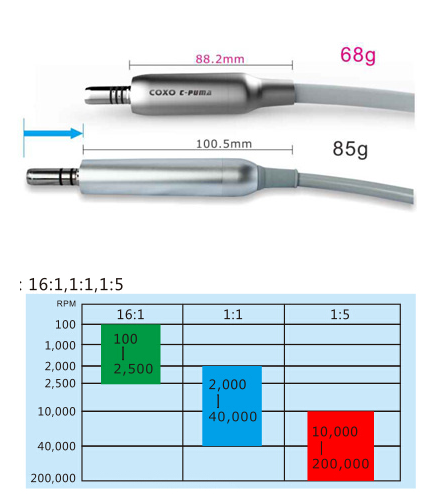

Speed range：2000rpm-40000rpm (1：1); 125rpm-2500rpm(16：1); 10000rpm-200000rpm(1：5)

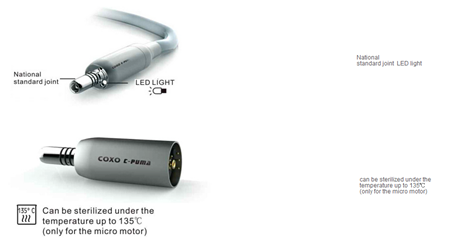

LED light>25000LUX
Light：white LED
135℃ autoclaved sterilization（only for micromotor）
Volume：126mm  Ø 23m

Main Unit：

Voltage：AC 100-240V
Out：Max. 120W
Volume：：160mm x140mm x70mm


Feature Of 1:5 LED Handpiece:

1:5 increasing contra angle
Inner water channel
large torque cartridge
International E type connect

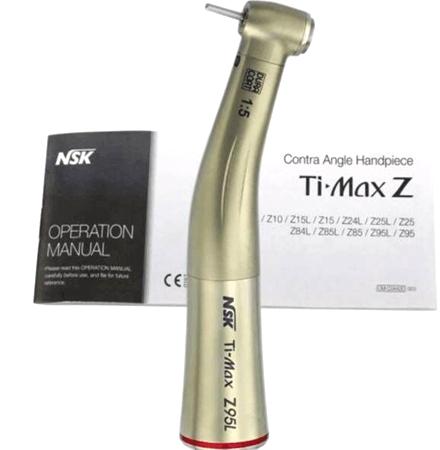

Optic Fiber Contra Angle

Technical:

Speed up to 5 times
4 way water spray
Chuck: push button
Bur applicable: 1.6 FG burs
Rotation speed: 200,000 rpm
Distingative Advatages:
Automatic internal clean
Accurate equipment clean and lubrication
Easy to use
Best price Ratio
Imported Bearings
Middle gear cutted by imported machine, which gives no clearance between gears and vibration free performance

Operation process：

Spray channel and transmission parts cleaning,hand piece external cleaning
Dry the spray channel and transmission parts with compressed air
Clean and lubricate the transmission parts with W&H F1 lubrication

Warranty: One Year! Service: Whole Life!
