Features:

1. Multi-function: Scaling, perio and endo.
2. Two modes of water supply: purified water from outside or auto-water supply.
3. Inner water pipe made from antiseptic material
4. Optical handpiece, more convenient for clinical operation
5. The handpiece is detachable and can be autoclaved to 135℃ and 0.22MPa.
6. The handpiece is cast from Titanium alloy to ensure sound mechanic function and durability.
7. Assembled with excellent piezo-ceramic, the handpiece has high and lasting power and generates little heat.
8. The cable is made from silica gel tube, soft and durable.
9. The scaling tip is made of special material. The cavitation produced from the end of scaling tip makes the cleaning of teeth and the killing of germ easily.
10. Automatic frequency tracking ensures that the machine always works on the best frequency and performs more steadily.
11. Eliminating dental calculus, bacterial plague and tea scales on the teeth quickly without hurting the gum or the enamel.
12. Controlled by PC, easy operation and more efficient for scaling.
13. Compatible with EMS, you could connect your EMS handpiece with this control box, and you could also connect this Woodpecker UDS handpiece with EMS control box.
14. CE and FDA certificated.

Technical Specifications:

Adapter input:220-240V~ 50/60Hz 150mA
Output primary tip vibration excursion:≤100μm
Output half-excursion force:<2N
Output tip vibration Frequency:28kHz±3kHz
Main unit input:24V~, 1.3A
Output power:3-20 W
Main unit fuse:T1.6AL, 250V
Adapter fuse:T0.5AL, 250V
Weight of main unit:1.35 Kg
Weight of adapter:1.2 Kg
Protection against electric shock:Class II, Type BF
Dimension:234 * 193 * 109 mm
Protection against harmful ingress of water:Ordinary equipment
Protection degree against water (used on foot switch):IPX1

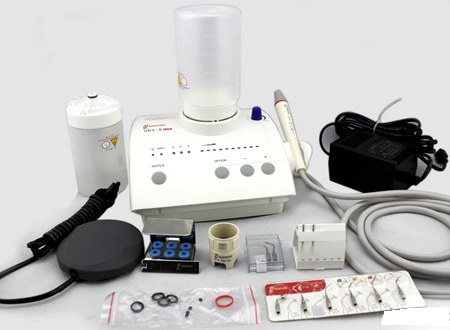

Packing List:

1. Main unit x 1
2. Detachable LED Handpiece x 1
3. Foot switch x 1
4. Water bottle x 2
5. Tip x 8 (G1 G4 G5 G6 P1 P3 P4D E1)
6. Adapter x 1
7. Torque wrench x 1
8. Operation manuel x 1
9. Hose x 1

Warranty: One Year! Service: Whole Life!
